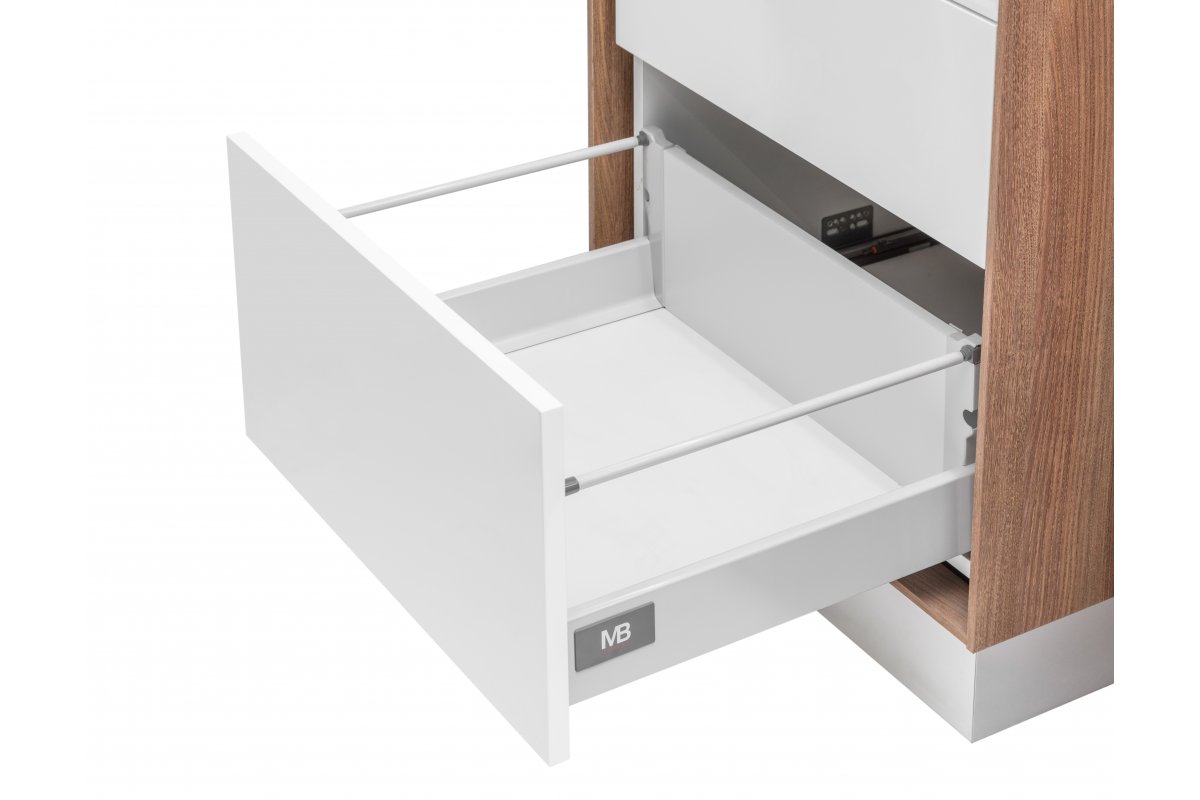

The Modern Box has a high durability, certified for 60,000 cycles (SGS). It provides a load of up to 40 kg and a full extension in lengths between 250 and 550 mm. It comes in 4 height variants (68, 83, 146, 210 mm) for universal drawers, both with a mortise and an overlapping front. High comfort of the product is ensured by quiet closing and synchronization of the slide path. The drawer fits a whole range of space organization systems, cutlery inserts, mats and waste sorters.
silent closing – the mechanism does not allow the drawer to be closed loudly, it is quietly closed;
load up to 40 kg – you can store food supplies in them – sugar, flour, rice, as well as large-size equipment or heavy ceramics;
proven, certified product durability for 60,000 cycles;
full extension in lengths from 250-550 mm will allow the drawer to be completely extended to the length of the entire slide, this is extremely useful for shallow drawers, where access to the back part is difficult;
4 height variants (68, 83, 146, 210 mm) for universal drawers for use with mortise or overlapping front;
synchronization of the driving path of the guides ensures the highest quality of work;
wide ranges of vertical and horizontal adjustment ± 2mm;
adjustment of the front inclination using a railing in medium and high drawers;
convenient adjustment from the outside of the drawer;
the possibility of using an internal front, additional railings and perforated sides;
easy installation thanks to the universal drilling template: PB-TEMPLATE-AXIS-MB, PB-D-DRILLJIG-SAMPLE;
a diverse range of solutions for the organization of the internal space of the drawer: transverse rails, transverse strips, compartments, CUSTOMI cutlery inserts, waste binders, AXISPACE anti-slip mats .
Specificaties
Kleur
Wit
Materiaal
Steel
Lengte
250mm
Uittrekbaar
vol
Funcies
Stille sluiting
Aanvullende informatie
medium ladeset "B"
Lading [kg]
40
Individuele verpakking
Ja

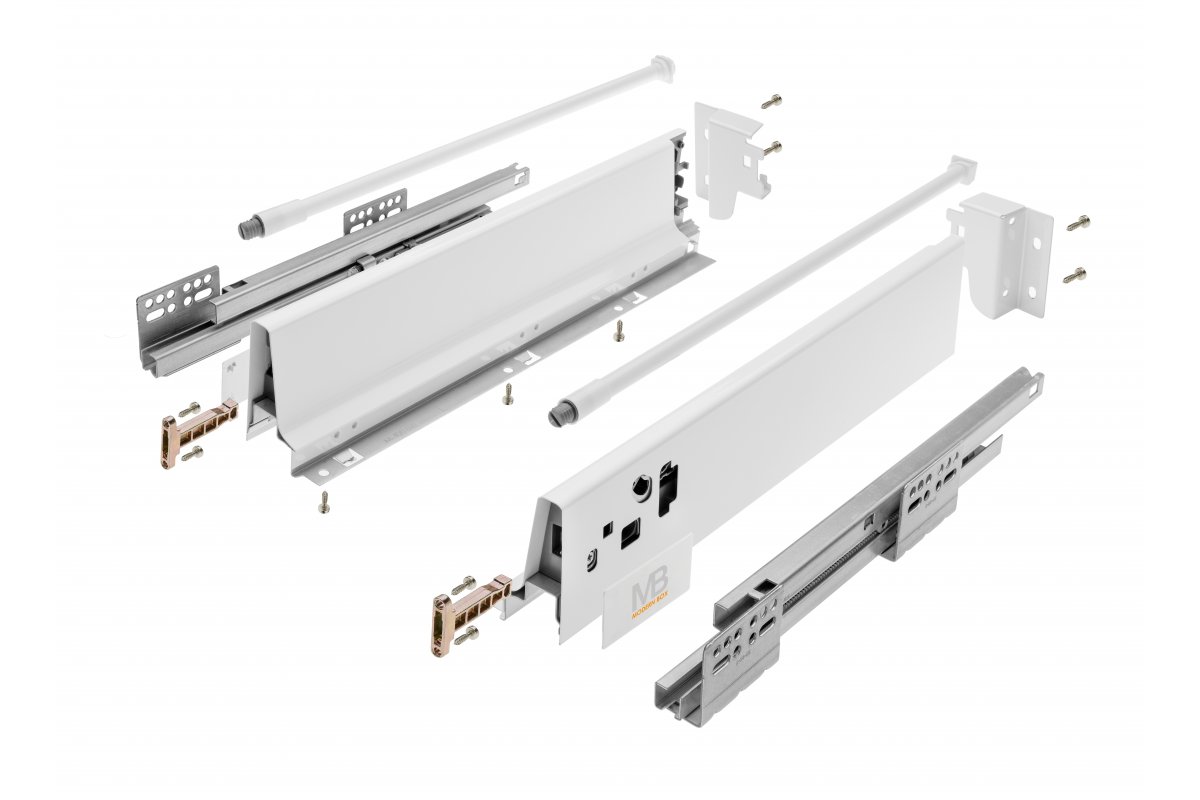

Inhoud van de kit
2 stuks. Leuning
Schroeven inbegrepen
Ja
Afronden
lak
Ladetype
Universal
Geteste duurzaamheid
60000 cycli
Verklaring van Overeenstemming
Ja
Voorste bevestiging
voor schroeven
Voorwaartse kantelverstelling
Ja
Verticale en horizontale aanpassing
Ja
Zijkant hoogte [mm]
83
Zijkant hoogte met leuning [mm]
146
